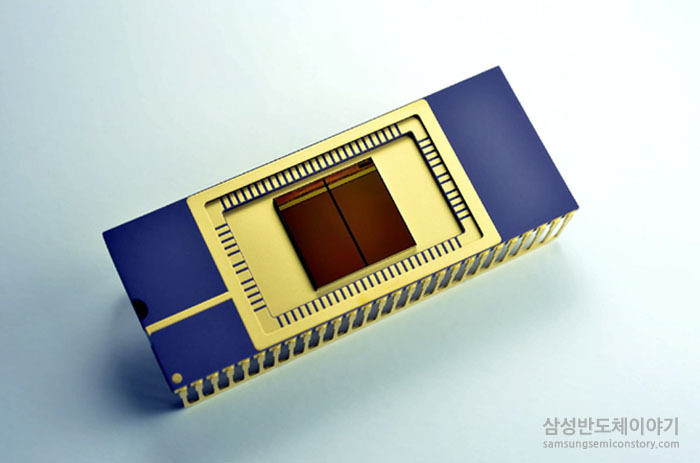

<p>3D V낸드플래시 메모리</p>



<p>[3D Vertical NAND, 3차원 수직구조 낸드플래시 메모리]</p>



<p>기존에 단층으로 배열된 셀을 3차원 수직으로 적층한 <a href="https://news.samsungsemiconductor.com/kr/%eb%b0%98%eb%8f%84%ec%b2%b4-%ec%9a%a9%ec%96%b4-%ec%82%ac%ec%a0%84-%eb%82%b8%eb%93%9c-%ed%94%8c%eb%9e%98%ec%8b%9c-%eb%a9%94%eb%aa%a8%eb%a6%ac/">낸드플래시 메모리.</a></p>



<p>3D V낸드플래시는 기존 2D 낸드플래시의 미세화 공정 기술 한계를 극복하기 위해 개발된 기술이다.</p>



<p>최첨단 10나노급 공정이 도입되면서 이웃한 셀 간의 간격이 좁아지게 되었다. 이로 인해 전자가 누설되는 간섭 현상이 심화되었는데, 이러한 문제를 극복하기 위해 기존 단층구조로 배열된 셀을 3차원 수직구조로 적층하는 혁신적인 기술이 개발된 것이다.</p>



<p>물리적 기술의 한계를 극복한 3D V낸드플래시는 셀 사이의 간섭 영향을 대폭 줄여 셀 특성을 향상시켰으며, 기존 2D V낸드플래시에 비해 메모리의 속도와 수명 및 전력 효율성을 크게 개선했다.</p>



<div class="wp-block-image"><figure class="aligncenter size-full"><img decoding="async" width="700" height="463" src="https://news.samsungsemiconductor.com/kr/wp-content/uploads/2021/07/Dic_words_20140728_02.jpg" alt=" 3D V낸드플래시 메모리" class="wp-image-16108" srcset="https://news.samsungsemiconductor.com/kr/wp-content/uploads/2021/07/Dic_words_20140728_02.jpg 700w, https://news.samsungsemiconductor.com/kr/wp-content/uploads/2021/07/Dic_words_20140728_02-300x198.jpg 300w, https://news.samsungsemiconductor.com/kr/wp-content/uploads/2021/07/Dic_words_20140728_02-348x229.jpg 348w" sizes="(max-width: 700px) 100vw, 700px" /></figure></div><p>The post <a href="https://news.samsungsemiconductor.com/kr/%eb%b0%98%eb%8f%84%ec%b2%b4-%ec%9a%a9%ec%96%b4-%ec%82%ac%ec%a0%84-3d-v%eb%82%b8%eb%93%9c%ed%94%8c%eb%9e%98%ec%8b%9c-%eb%a9%94%eb%aa%a8%eb%a6%ac/">[반도체 용어 사전] 3D V낸드플래시 메모리</a> first appeared on <a href="https://news.samsungsemiconductor.com/kr">삼성전자 반도체 뉴스룸</a>.</p>]]></content:encoded>
